Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: BRVISION
  • Model Number: BR-RVC06
  • Type: Digital Camera
  • Style: Mini Camera
  • Sensor: CCD/CMOS/AHD
  • Technology: With IR Lamps
  • Special Features: Waterproof / Weatherproof
  • Resolution: 700TVL
  • Lens Angle: 120 degree, 170 degree
  • Certificate: ISO9001/FCC/CE/RoHS/E-MARK
  • Image Sensor: 1/3" CMOS/CCD optional
  • Warranty: 12 Months
  • IR Distance: 20m
  • Feature: Night Version
  • Voltage: DC 12V
  • Waterproof grad: IP 69k
  • System: NTSC/PAL optional

Packaging & Delivery

Packaging Details White Box
Delivery Time 3-7 Work days
Product Description

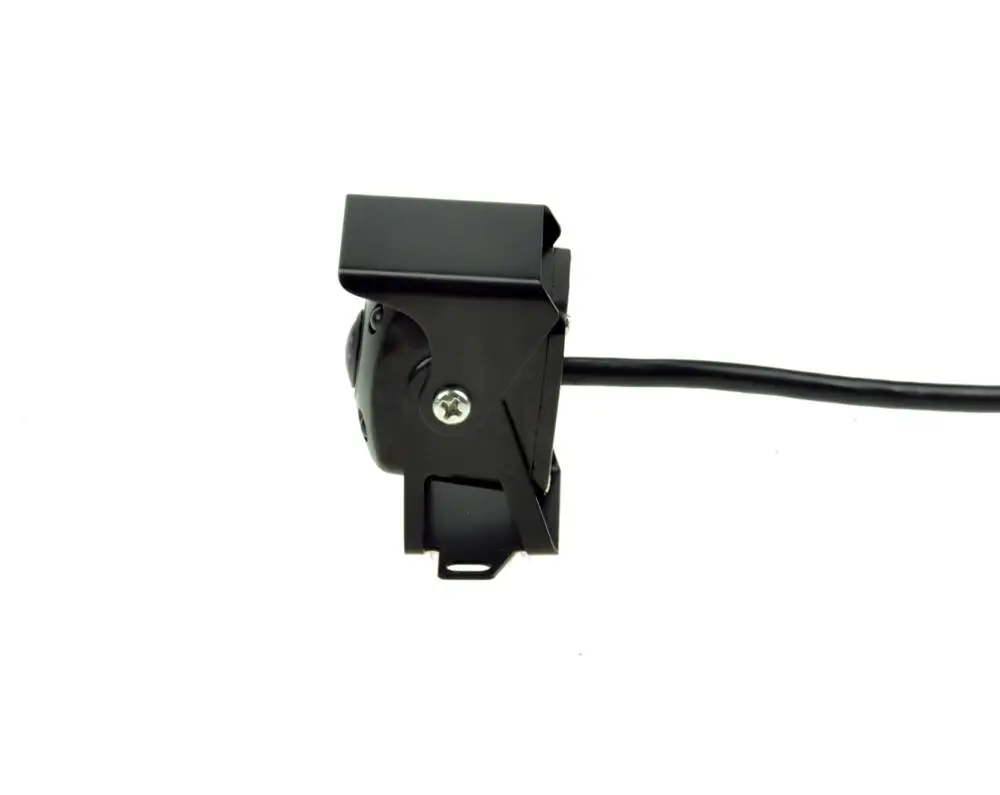

BRvision Mini Compact supper wide angle Camera with 4P lock connector for vechile



BR-RVC06,  universal mini night vision rear view camera for all kind of vehicles. 700TVL, with night vision function. The casing of the camera has a IP69K rating which can withstand all weather conditions. 120° and 170°view angle for option. It is the good choice for usage.

Item No.

BR-RVC06

Image Type

1/3" Color CCD/ CMOS/ AHD

TV System

NTSC/PAL

Lens Angle (Deg.)

120 degree, 170 degree

IP Rating

IP69k

Vibration Rate

10G

Connector

4P connector

Effective Pixels

N: 510×492 pixels P: 500×582 pixels

Horizontal Resolution

700TVL

B.L.C

Back light Compensation (Auto)

White Balance

Auto White Balance (Auto)

Minimum Illumination

0Lux (LED ON)

S/N Ratio

48dB

Electronic Shutter

1/60~1/100,000 Sec

Power consumption

<3W

Built-in Lens

f: 2.8mm

Power Consumption

DC 12V (+/-10%)

Night vision

With IR Lamps

Audio

With audio

Operation Temperature

-30℃~+70℃.RH95% Max

Storage Temperature

-40℃~+80℃.RH95% Max

Certificate

FCC,CE, E-mark,ISO9001,TS16984, RoHs



Hot Tags: mini night vision cmarea, br-rvc06 manufacturers, suppliers, discount, high-quality, best, newest
Company information

BRvision Technology Co.,LTD is a manufacturer and company serving the Heavy-duty truck and commercial vehicle industry with vehicle safety systems, including reversing camera, monitor, dash camera, parking sensor and mobile DVR etc.

BRvision was established in 2008, designed the first OE mirror monitor & camera for Chrysler.

Our new factory was established in Songgang, Shenshen in 2012. In these year, all the test equipment installed in factory, and we also produced OE camera for Suzuki.

In 2013, we past the ISO, set up our R&D department, also the overseas sales office established in Shajing, and the ERP system online this year.

We do 100% exporting, most of our products were exported to Western EU, Oceania and North America. We offer one global price, which is fair to each client.

Our mission is providing you a safety solutions on vehicles ! Welcome to visit our factory !



Our Services

As a up-rising star in this field, the advantages we have as follows:

We are professional Vehicle camera system manufacturer with rich experience to serve OEM and ODM for all top famous brands in this field.

We past all of the relative Certificates in this field, : E-mark, FCC,CE, ISO9001, E9, IP69K. We are applying for TS16949.

We have good quality control, our products need to be doing tests such as Salt Spray Test, High&Low Temperature,humidity Test, Aging Test,Vibration Test ,Waterproof Test, Viewing angle Test,Color Test ......

We have Own designing team for new products development, that’s why we are good at OEM/ODM projects. We have a ERP system to control the production, one ERP system to control our sales tem, and one ERP system to control our R&D team.



Trade show reviews

Since BRvision established in 2008, we have been attending the automechanika show Frankurt and IAA show Germany and Sema show Las Vegas and some other hot automative shows all over the world for many years . Welcome to contact our sales for our trade show information .



Solutions

BRvision is dedicated to providing all kinds of reversing cameras and safety products to help keep their drivers,vehicles and the people around them safe.



Packaging & Shipping



FAQ

Q1: What is your Warranty policy?
A1: 12 months is guaranteed from the production date
If faulty items happened at destination/during warranty time, we can replace at our cost;
If faulty items caused by human accident is not our responsibility, we can replace at your cost.



Q2: What is your MOQ?
A2: Depends on model you choose, small and trial order acceptable.



Q3: What is your lead time?
A3: 5-7 working days for trial orders and 2-3 weeks for bulk orders after we get the payment.



Q4: What is your payment terms?
A4: T/T(Bank transfer), PayPal, Western Union are available.





Q5: Do you accept OEM or ODM service?
A5: OEM & ODM are welcomed.



Q6: Any certificate for your products?
A6: Yes, we have E-mark ,CE, FCC ,E9 ....certificate for your reference.



Q7: What is your terms of packing?

A7: Generally, we pack our goods in neutral white boxes and colorful gift box. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.



Q8: How do you make our business long-term and good relationship?
A8: 1. We keep good quality and competitive price to ensure our customers benefit ;
      2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
